简介

TCP 协议是面向连接,可靠的流式协议,当 Server 去 Read 的时候,每次读到的数据都不一定是完整的,该方法会返回读到的字节数,因此,当我们写 Server 的时候,什么时候去回调用户设置的 callback ?也就是怎么样保证每次都能拿到一个完整的包数据,这个就是”粘包“问题的由来。

传统的,有两种方法解决。一是分隔符协议,即每条消息结尾设置固定分隔符,Server 读到分隔符就认为读到了完整的包数据;二是长度协议,即在每个消息头部设置固定长度的字段,表征消息长度,再往后读取该长度的消息即可。

目前长度协议用的较多,因为分隔符协议需要 Server 不停的检测,很耗费性能。长度协议实现中比较重要的点是头部的长度以及字节序,2 个字节可表示 2^16-1 个字节的内容,如果不够,那就上4字节,字节序相关的只是可以参考:”字节序“是什么鬼?

编码

先来个没处理粘包的:

common/server.go:

package common

import (
    "io"
    "log"
    "net"
)

func Start()  {
    listener,err := net.Listen("tcp","127.0.0.1:8866")
    if err != nil {
        log.Fatal(err)
    }
    defer listener.Close()

    for  {
        con,err := listener.Accept()
        if err != nil {
            log.Println(err)
            continue
        }
        defer con.Close()

        for {
            var data = make([]byte,5)
            n,err := con.Read(data)
            if err != nil && err != io.EOF{
                log.Println(err)
            }
            if n > 0 {
                log.Println("received msg",n,"bytes:",string(data[:n]))
            }
        }
    }
}

测试一下:

package common

import (
    "log"
    "net"
    "strconv"
    "testing"
    "time"
)

func TestTcp(t *testing.T)  {
    conn,err := net.Dial("tcp","127.0.0.1:8866")
    if err != nil {
        log.Fatal(err)
    }
    defer conn.Close()

    for i := 0;i < 10;i++ {
        var err error
        _, err = conn.Write([]byte(strconv.Itoa(i) + "aaa\n"))
        _, err = conn.Write([]byte(strconv.Itoa(i) + "bbbb\n"))
        _, err = conn.Write([]byte(strconv.Itoa(i) + "ccccc\n"))
        if err != nil {
            panic(err)
        }
    }
    time.Sleep(time.Second)
}

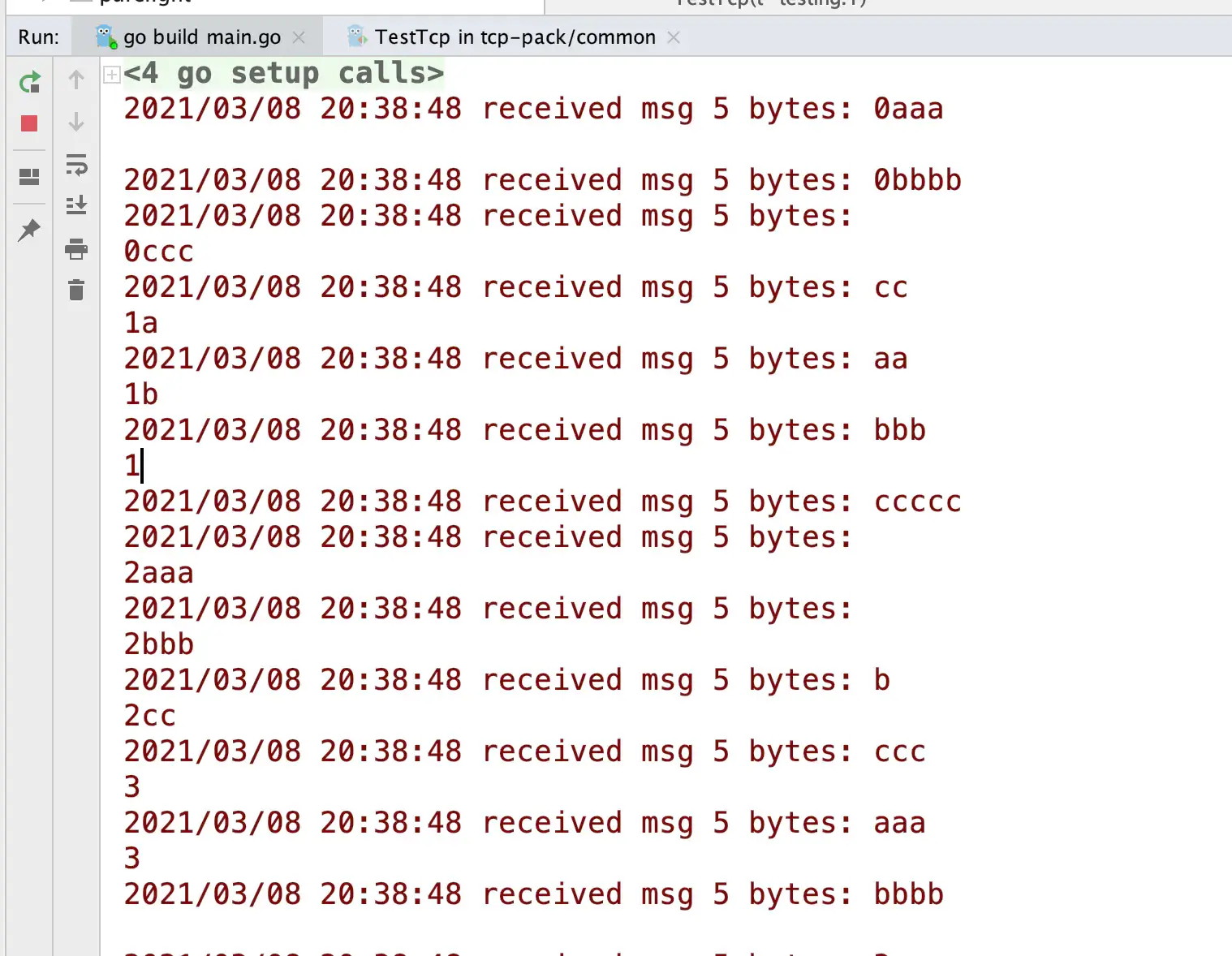

因为每次只读5个字节,可以明显看到消息”乱了“,但就算把这个值增大,你只要是设置了,就会存在这个问题。

分隔符协议

delimeter/server.go:

package delimeter

import (
    "bufio"
    "io"
    "log"
    "net"
)

func Start()  {
    listener,err := net.Listen("tcp","127.0.0.1:8866")
    if err != nil {
        log.Fatal(err)
    }
    defer listener.Close()

    for  {
        con,err := listener.Accept()
        if err != nil {
            log.Println(err)
            continue
        }
        defer con.Close()

        reader := bufio.NewReader(con)
        for {
            data,err := reader.ReadSlice('\n')
            if err != nil {
                if err != io.EOF {
                    log.Println(err)
                }else {
                    break
                }
            }
            log.Println("received msg",len(data),"bytes:",string(data))
        }
    }
}

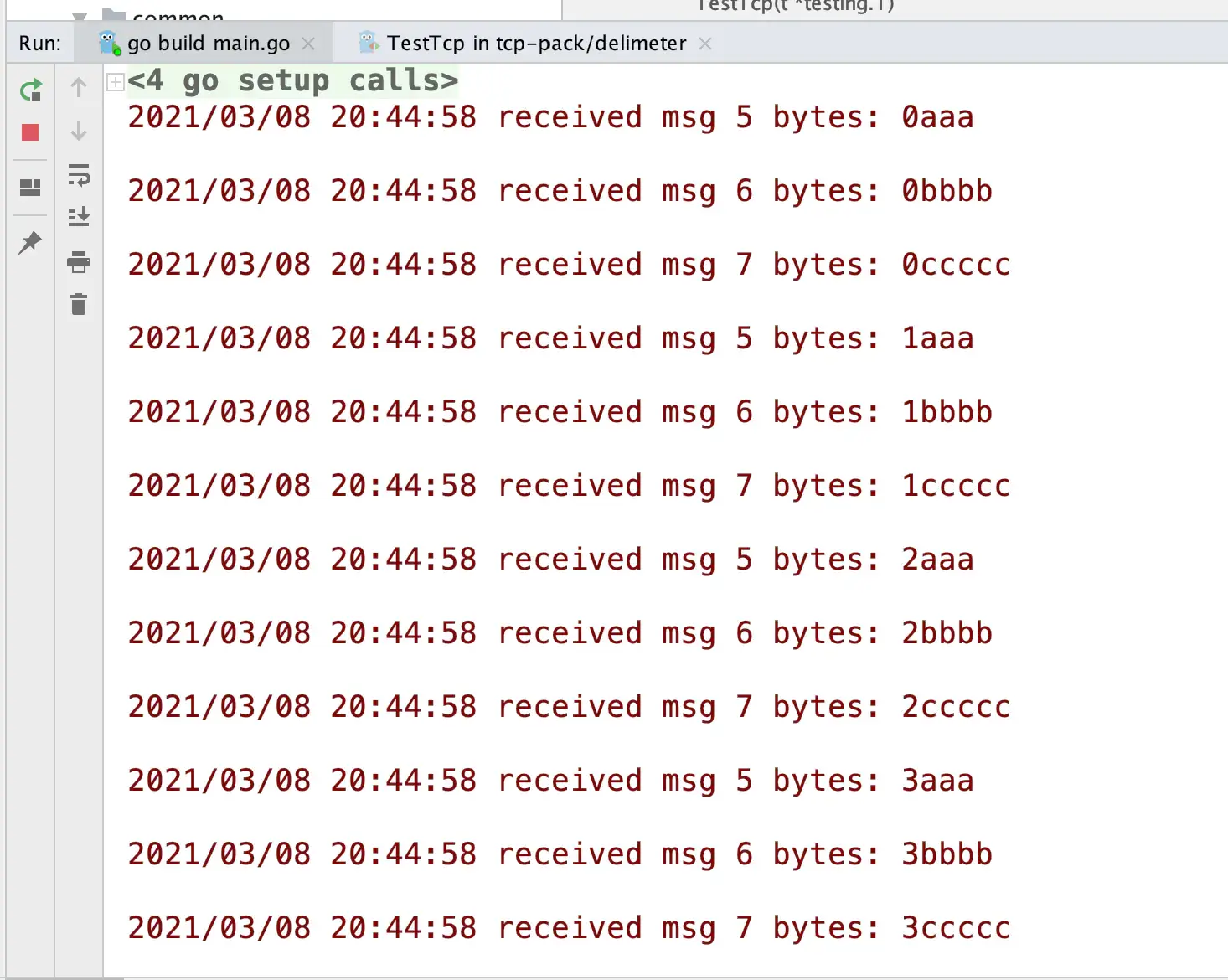

还是拿上个测试脚本跑,结果:

这次看到每个消息长度不一样,但是都是”完整的“。

长度协议

length/server.go:

package length

import (
    "bufio"
    "bytes"
    "encoding/binary"
    "io"
    "log"
    "net"
)

func Start() {
    listener, err := net.Listen("tcp", "127.0.0.1:8866")
    if err != nil {
        log.Fatal(err)
    }
    defer listener.Close()

    for {
        con, err := listener.Accept()
        if err != nil {
            log.Println(err)
            continue
        }
        defer con.Close()

        reader := bufio.NewReader(con)
        for {
            peek,err := reader.Peek(4)
            if err != nil {
                if err != io.EOF {
                    log.Println(err)
                }else {
                    break
                }
            }

            buffer := bytes.NewBuffer(peek)
            var length int32
            err = binary.Read(buffer,binary.BigEndian,&length)
            if err != nil {
                log.Println(err)
            }
            if int32(reader.Buffered()) < length + 4 {
                continue
            }

            data := make([]byte, length + 4)
            _, err = reader.Read(data)
            if err != nil {
                continue
            }
            log.Println("received msg", string(data[4:]))
        }
    }
}

client 也得相应调整:

package length

import (
    "bytes"
    "encoding/binary"
    "log"
    "net"
    "strconv"
    "testing"
    "time"
)

func TestLengthClient(t *testing.T) {
    conn,err := net.Dial("tcp","127.0.0.1:8866")
    if err != nil {
        log.Fatal(err)
    }
    defer conn.Close()

    for i := 0;i < 10;i++ {
        var err error
        data,err := Encode(strconv.Itoa(i) + "aaa\n")
        _, err = conn.Write(data)
        data,err = Encode(strconv.Itoa(i) + "bbbb\n")
        _, err = conn.Write(data)
        data,err = Encode(strconv.Itoa(i) + "ccccc\n")
        _, err = conn.Write(data)
        if err != nil {
            panic(err)
        }
    }
    time.Sleep(time.Second)
}

func Encode(message string) ([]byte, error) {
    var length = int32(len(message))

    var pkg = new(bytes.Buffer)
    err := binary.Write(pkg, binary.BigEndian, length)
    if err != nil {
        return nil, err
    }

    err = binary.Write(pkg, binary.BigEndian, []byte(message))
    if err != nil {
        return nil, err
    }

    return pkg.Bytes(), nil
}

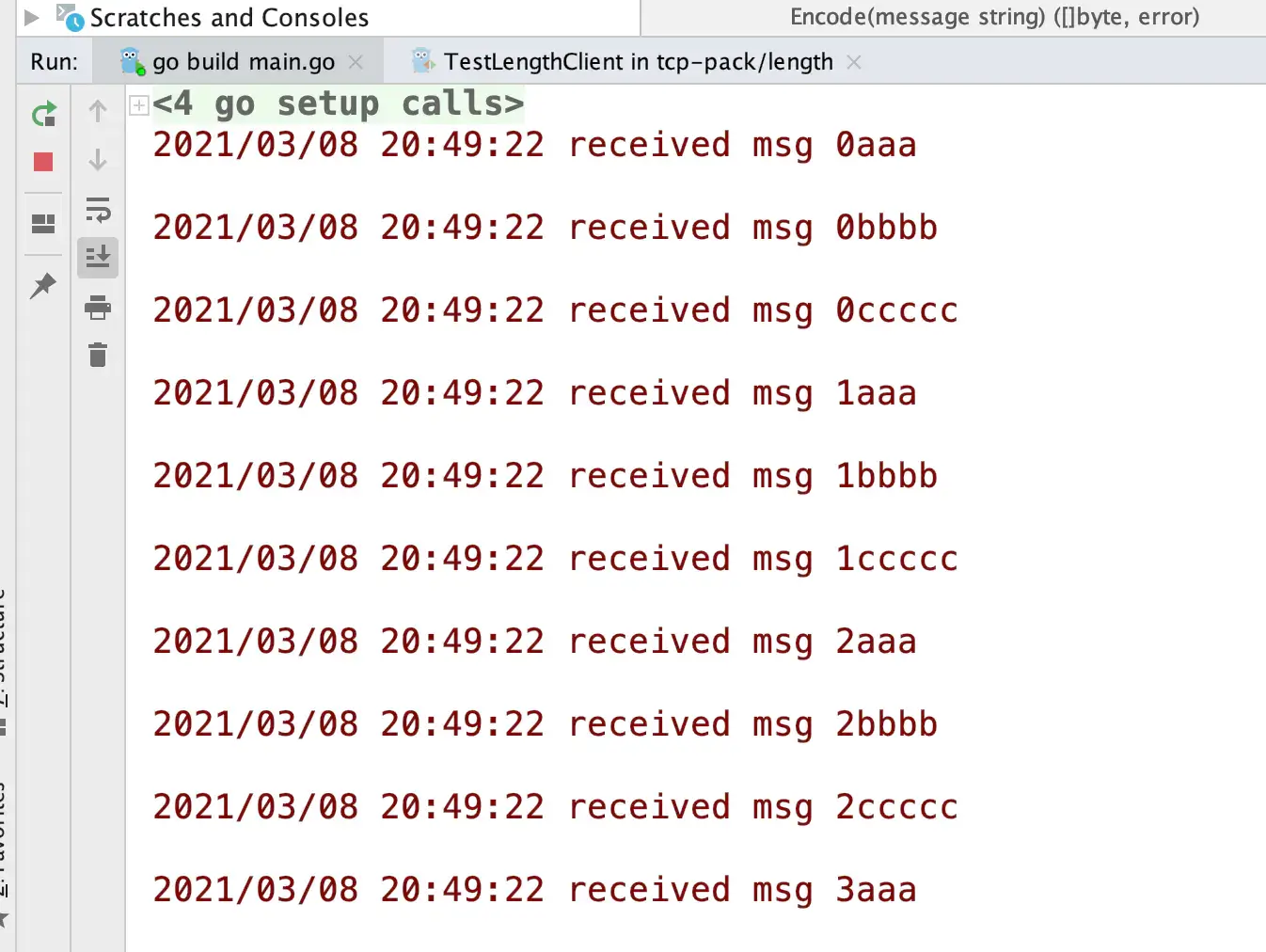

测试结果:

效果跟分隔符协议一样,都可以解决”粘包“问题。

PHP 客户端

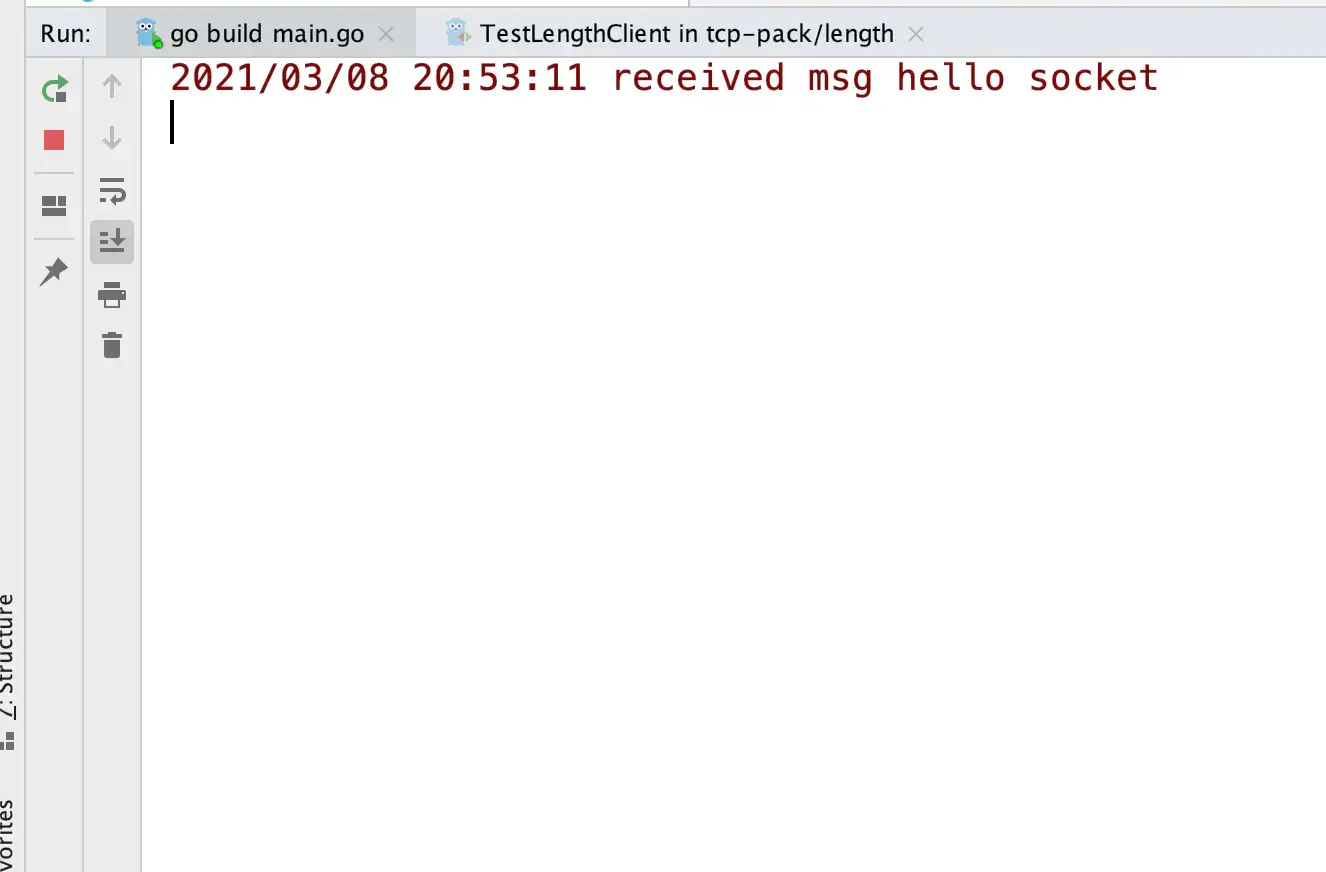

只要是 TCP 协议,任何语言都需要处理 ”粘包“ 问题,我们用 PHP 写一个客户端测试一下:

<?php
/**
 * Created by
 * Author purelight
 * Date 2021/3/8
 * Time 20:50 下午
 */

$host = "127.0.0.1";
$port = 8866;
if (false === $socket = socket_create(AF_INET, SOCK_STREAM, SOL_TCP)){
    die('socket create fail');
}

if (false === socket_connect($socket, $host, $port)){
    die('socket connect fail');
}

$msg = 'hello socket';
if (false === $n = socket_write($socket, encode($msg))){
    die('socket write fail');
}

socket_close($socket);

echo 'socket test success'.PHP_EOL;

function encode(string $msg){
    $length = strlen($msg);
    $header = pack('N',$length);
    return $header.$msg;
}
